Electrical distribution

Transformers

Cast resin transformers mv/lv - lv/lv

Three phases cast resin transformers: primary tension up to 36 kV, aluminium windings, copper windings only on request, plug-in bushings on request, double primary or secondary windings, connection group standard Dyn11 different group under request. Avalable options: thermal protection PT100, control unit type TC154, NT935, VRT200, Box IP31, Etc.

Oil immersed transformers mv/lv - lv/lv

Three phases oil immersed transformers: hermetic type or with oil keeper execution, isolation voltage up to 36 kV, copper and aluminium windings, porcelain bushings for MV / LV and neutral, under request elastimod type, double primary or secondary windings, connection group standard Dyn11 or different groups under request. Option: relé buchholz, thermometer, DGPT2, air cable Box IP55 for MV / LV side, siliconic oil, vegetal oil, etc.

Power transformers hv/mv - mv/lv

Oil Power transformers: up to 60 MVA and 132 kV, copper and aluminium windings, porcelain bushings for HV / LV and neutral, under request elastimod type, double primary or secondary windings, connection group standard Dyn11 different group under request. Available options: relé Buchholz, thermometer, DGPT2, air cable box IP55, siliconic oil, vegetal oil, on load tap changer, etc…
Cast Resin power transformers: up to 10 MVA and 36 kV, aluminium windings, special windings and special execution on
customer requirement.

Generating sets

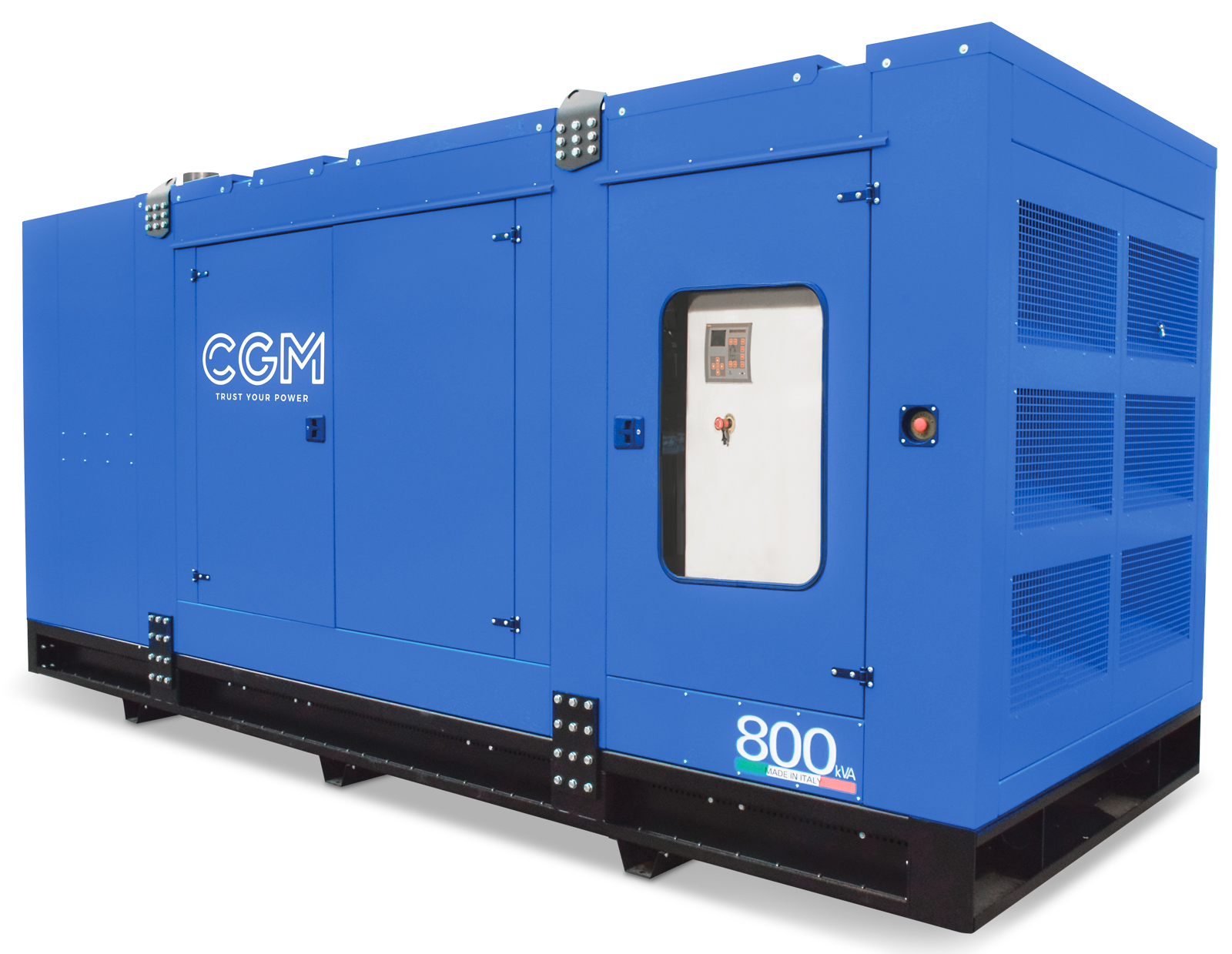

Generation set up to 3150 KVA, available in open or soundproof execution, with wrap for indoor or outdoor installation. Integrated on-board systems like control panel, remote starting, commutation GE/net. Available on request special configurations.

Prefabricated and equipped shelter

Modular structures for outside installation, with both standard and fire- resistant insulations. Engineered and manufactured according to the customer specification and needs, guaranteed by mechanical calculation note for self- supporting structure, electrical cabling, auxiliary systems like conditioning, over pressure, fire and fighting, etc. Available on request special configurations.

Standardized medium and low-voltage switchgears

Standardized medium and low-voltage switchgears for transformer and distribution plant, engineered and realized according to the specific customer request and necessity. Medium voltage switchgear up to 36 kV in standard or compact configuration. Low voltage panel type power center (PC) up to 6300 A and motor control center (MCC) in fixed or withdrawable execution up to 4000 A. Available on request special configurations.

Control rooms

Control room for industrial applications, equipped with auxiliary systems, distributions panels, controls panels, video and audio systems, telephone and interphone systems, gas and fire detections units. All systems are calibrated according to the customer specifications and tested before delivery.
